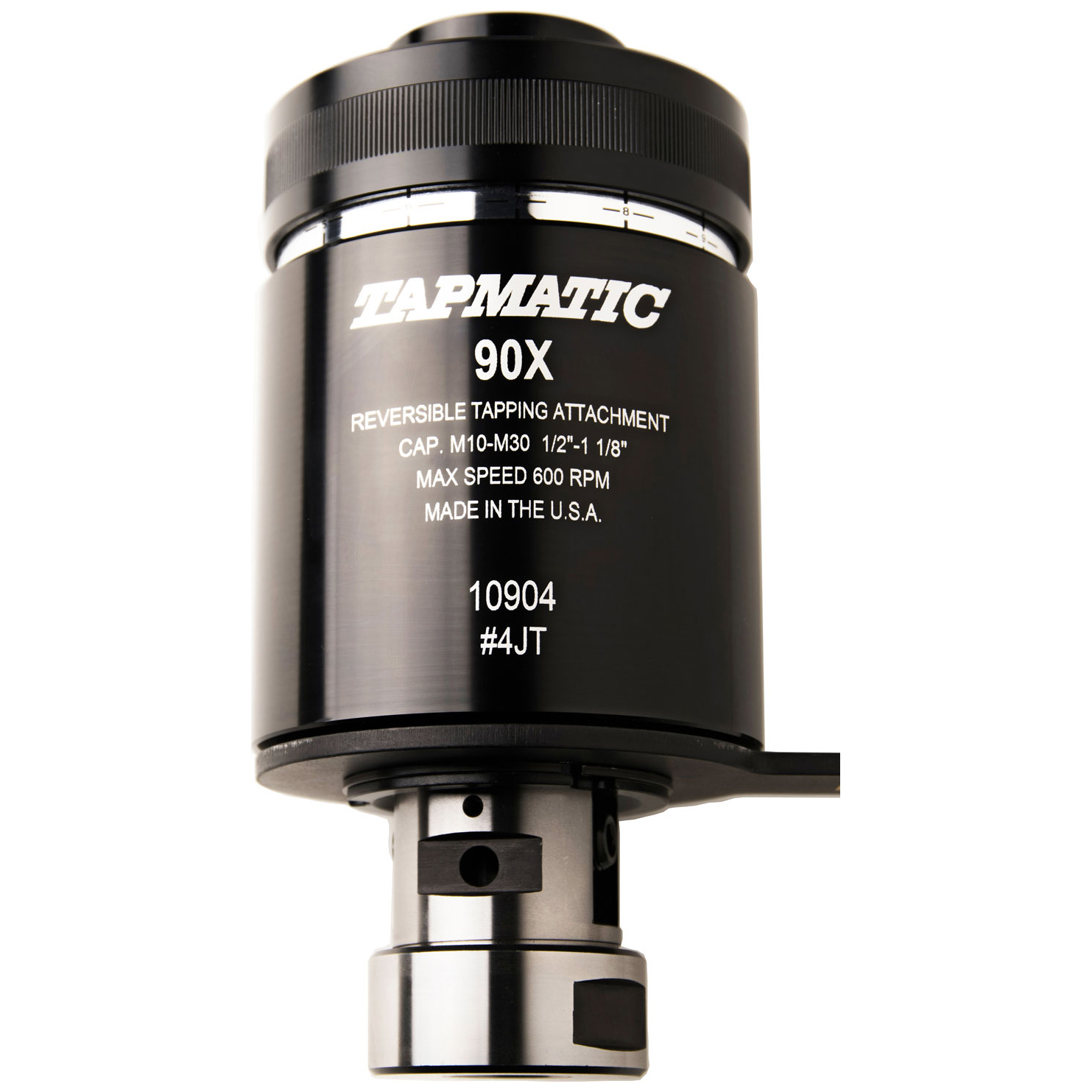

Tapmatic 90X Tapping Head Auto Reverse M10 - M30

Tapmatic 90X Auto Reverse Tapping Head

Self-Feed - Permits the tap to act as its own lead screw to consistently produce gauge perfect threads.

Pre-Selective Torque Control - A safety device which transmits machine power to the tap and helps prevent tap breakage.

1.75:1 Reverse Ratio - The tap retracts 75% faster than it entered to greatly increase production.

Standard Right Hand Tapping - May be modified for left hand tapping at no extra cost.

Re-entry Cushion - A cushioned drive to eliminate cross threading.

Spring Biased Drive & Reverse - Provides smooth disengagement and transition from drive to reverse.

Collet Chuck Spindle Nose - Jacobs rubber flex collets and back jaws adapt to all tap sizes within a unit's rated capacity.

Easy Installation - A variety of tapers or thread mounts allow these attachments to adapt easily to all types of rotating machine spindles.

Specifications:
Capacity : M10 - M30
Max Speed : 600 rpm
Mounts : J4, 1.1/2-18
Overall Length : 219mm
Diameter : 105mm

Part Number 90X
